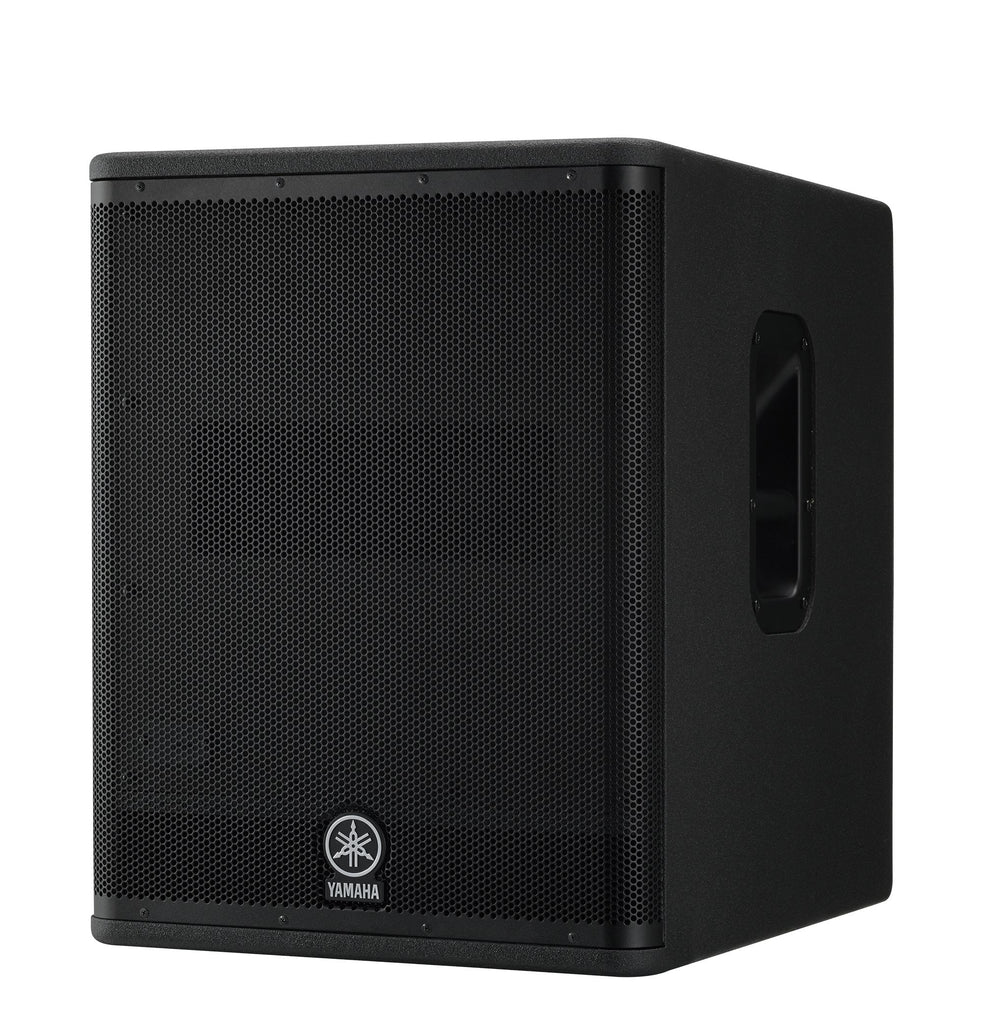

Yamaha DXS15 12” Active Subwoofer


Yamaha DXS15 12” Active Subwoofer


The all-new DXS15 subwoofer delivers powerful yet focused low end reaching as low as 42Hz. The DXS’s fully optimized band-pass design combines with its powerful Class-D amplifier, long travel 15” woofer, and formidable DSP to deliver a tight, impressive bass with outstanding depth and high power output.


General specifications

Speaker type 15" powered subwoofer, Band-pass type
Frequency range (-10dB) 45Hz - 160Hz
Components LF Diameter:15" cone, Voice Coil:2.5"
Output power Dynamic:950W / Continuous: 600W
Maximum output level (1m; on axis) 132dB SPL
I/O connectors INPUT: XLR-3-31 x2 , THRU: XLR3-32 x 2(Parallel with INPUT)
Power consumption 120W
Power requirements 100V - 240V, 50Hz/60Hz
Pole socket 35mm (Top x1)
Dimensions W 478mm (18 1/2")
H 618mm (24 1/2")
D 624mm (24 1/2")
Net weight 38.0kg (83.8lbs)
Others Material: Wood (Paint, Black)
