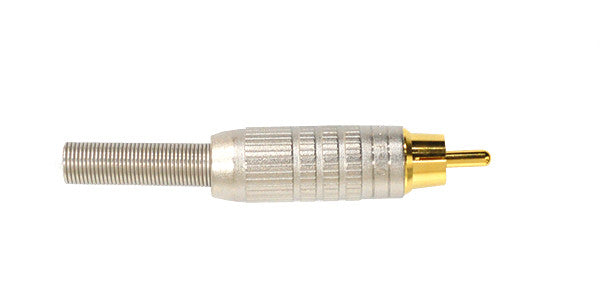

CANF10 - Canare Full-Size RCA Audio Connector.
All Canare premium "F-series" audio connectors are designed to accommodate small to large O.D. cables, with a generous soldering area for easy wiring assembly, good electromechanical characteristics, super performance and long life durability for the discriminating professional. Perfect for Guitar/Keyboards, sound mixers, PA systems, testprobes and Hi-Fi Interconnects.
Satin-finished, nickel-plated solid brass handle shuts out static and electromagnetic noise. Specially designed knurled surface to prevent finger slippage.
Full-size RCA Audio Connector.
Cable Entry I.D. : .244 in (6.2 mm)
Max. Cable O.D. : .236 in. (6.0 mm)
Body: Brass
Material Plating: Nickel
Spring type strain relief prevents cabledamage due to repeated bending at the connector entry point. Cable lasts 3 times longer than plugs without strain relief.
Proprietary 360 degree cable clamp design that ensures long life durability.
Gold-plated brass inner shaft offering low contact resistance and eliminates corrosion problems with the mating receptacle.
Deluxe clamp and body design.
|
