Radial Catapult RX4L 4-Channel Cat-5 Line-Level Audio Snake (Receiver)

Radial Engineering

Radial Catapult RX4L 4-Channel Cat-5 Line-Level Audio Snake (Receiver)

$349.99

Radial Catapult RX4L 4-Channel Cat-5 Line-Level Audio Snake (Receiver)

The Radial Catapult is a 4-channel audio snake that lets you send analog or AES digital audio signals over standard Cat 5 or Cat 6 shielded twisted pair cable. This allows stage techs to take advantage of the relatively low cost of this abundantly available cable for return snakes or for transporting balanced audio across a large stage. For the system contractor, the Catapult lets you take advantage of pre-wired networks to connect audio from one room to another.

Six configurations are offered with a choice of three input modules and three output modules. Each input module features four XLR inputs, four XLR thru-puts along with two Neutrik Ethercon™ outputs to connect the Cat 5 cable to the desired output module. These are equipped with RJ45 type Ethercon input and thru-put plus two sets of XLR outputs. These may be ordered without transformers for sub-snakes or to transmit AES audio signals; with mic isolation transformers for signal splitting between FOH, monitors or the recording system, or with line level isolation transformers to eliminate system noise. A ground lift switch is provided at each end for the Ethernet cable connection to help eliminate hum and buzz caused by ground loops.

As with all Radial products, the Catapult is constructed with solid 14-gauge steel to handle the rigors of live touring and is finished in a powder-coat finish to keep your Catapult looking good for years! Inside, a two-sided PCB is used to mount the connectors and transformers doubling up the solder joints for maximum durability.

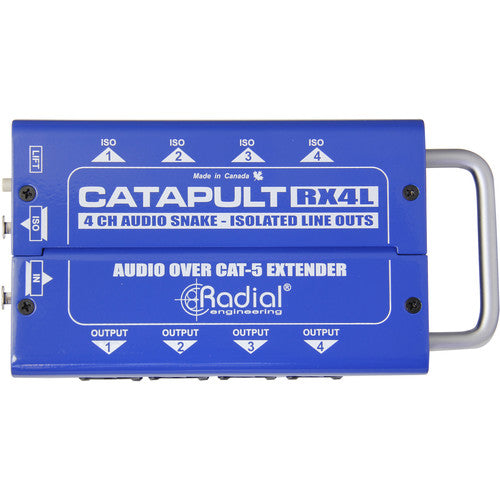

RX4L: 4-Channel Receiver with 4 balanced XLR outputs and 4 Line-Level outputs

The Catapult TX4L and RX4L are four-channel line level splitters and isolators that allow you to split four audio channels and transmit them over a single standard cat5 shielded twisted pair cable. This allows you to split line level signals between three different destinations, either on stage or using a buildings existing Cat 5 or Cat 6 cabling to route the signal. Each unit features line level isolation transformers which help to eliminate buzz and hum caused by ground loops, saving hours of troubleshooting. The TX4L has four XLR-F inputs and four isolated XLR-M outputs, while the RX4L has four direct XLR-M outputs and four isolated XLR-M outputs. Both units feature RJ45 type Ethercon connections with ground lift switches.

  • Send analog audio or digital AES signals over sheilded Cat 5/6 cable
  • Works within a building's existing cable infrastructure
  • Choice of direct-wired or isolated splits
  • Transmits four AES signals (eight audio channels)
