Sony
Sony TC-580 1/4", 4 track Reel to reel recorders
Recently serviced and in full functioning condition.
New belts, pinch roller and LED VU meter lights. Transport cleaned, re-lubricated and rebuilt
Minor cosmetic blemishes that do no affect its function.
WORLDWIDE SHIPPING IS AVAILABLE.
INQUIRE FOR SHIPPING QUOTE.
General Description

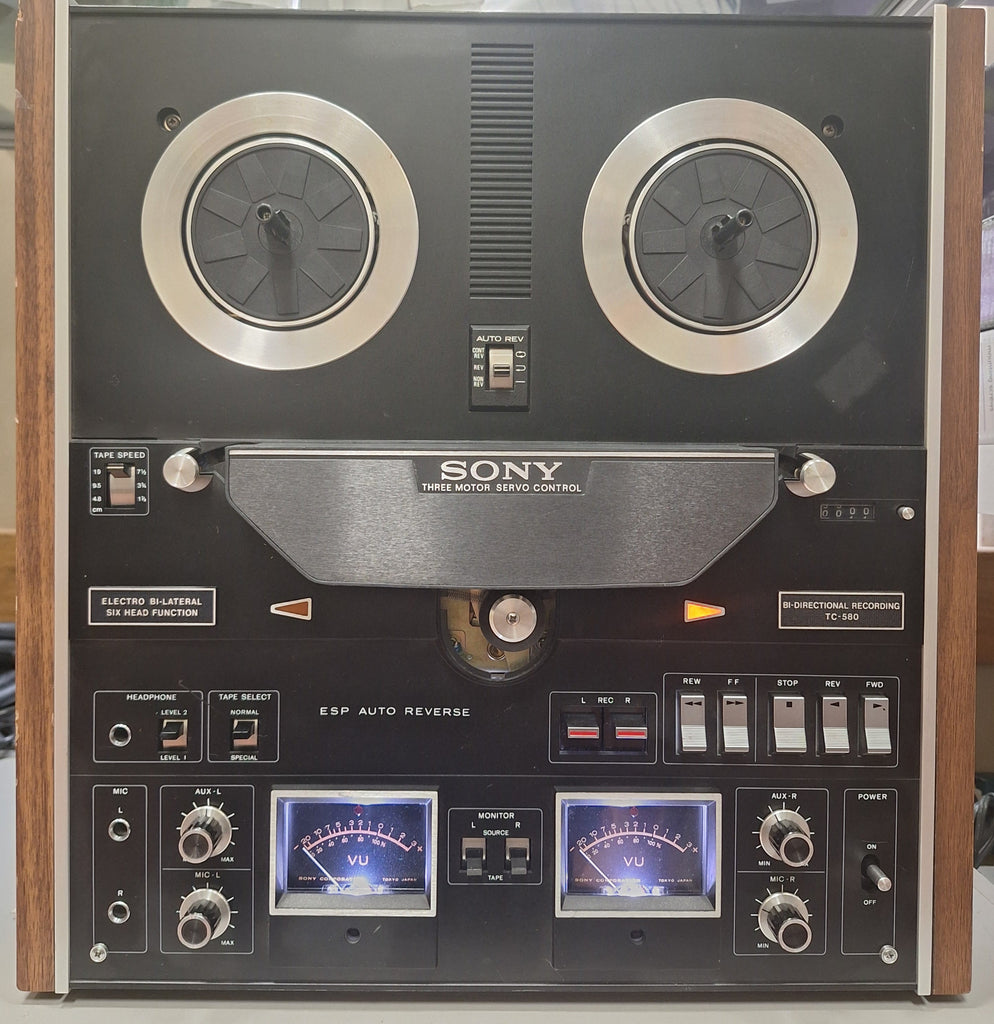

The highly sophisticated Sony TC-580 is designed for the serious music enthusiast.
Numerous design refinements make the 580 one of the most professional tape recorders available.
Special features of the model include a three-motor, six-head function, AC Servo controlled capstan drive motor prevents speed variation regardless of voltage or load changes, Symmetrical transport mechanism assures optimum performance in forward and reverse modes. Advanced ESP automatic reversing system. Microphone and line mixing. Sound-on-sound recording with the use of a connecting cord. Built-in reel locks. Record equalization selector switch for standard or Sony Low-noise High-output tape. Vertical or horizontal operation.
Specifications
Track system: auto reverse, 4-track, 2-channel, stereo/monaural system

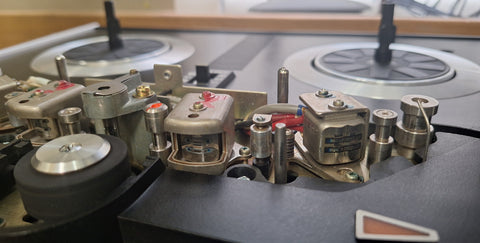

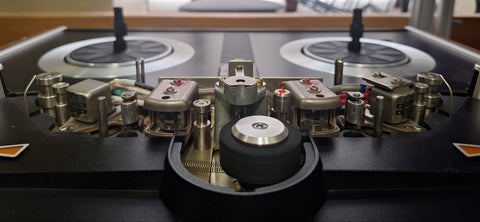

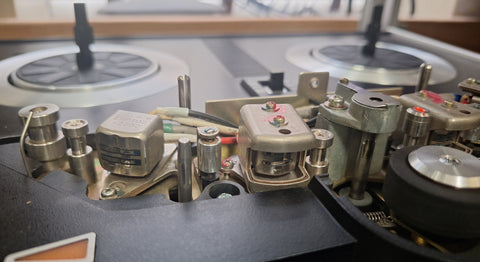

Heads: 2 x playback, 2 x combination record/erase
Reel size: up to 7 inch reel
Tape speeds: 1 7⁄8 3 3⁄4 7 1⁄2 ips
Wow and flutter: 0.06% (7 1⁄2 ips)
Frequency response: 20Hz to 30kHz (7 1⁄2 ips)
Signal to Noise Ratio: 56dB
Total harmonic distortion: 1.2%
Input: 60mV (line), 0.2mV (mic)
Output: 0.775V (line)
Semiconductors: 45 x transistors, 1 x IC, 27 x diodes
Dimensions: 446 x 225 x 460mm
Weight: 19.5kg
