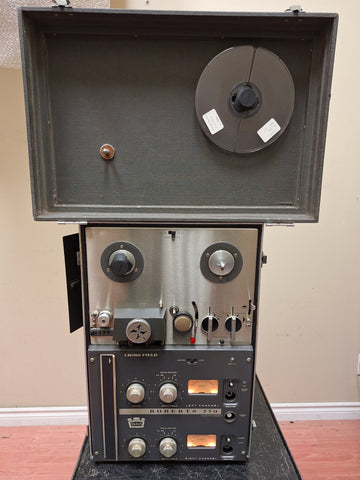

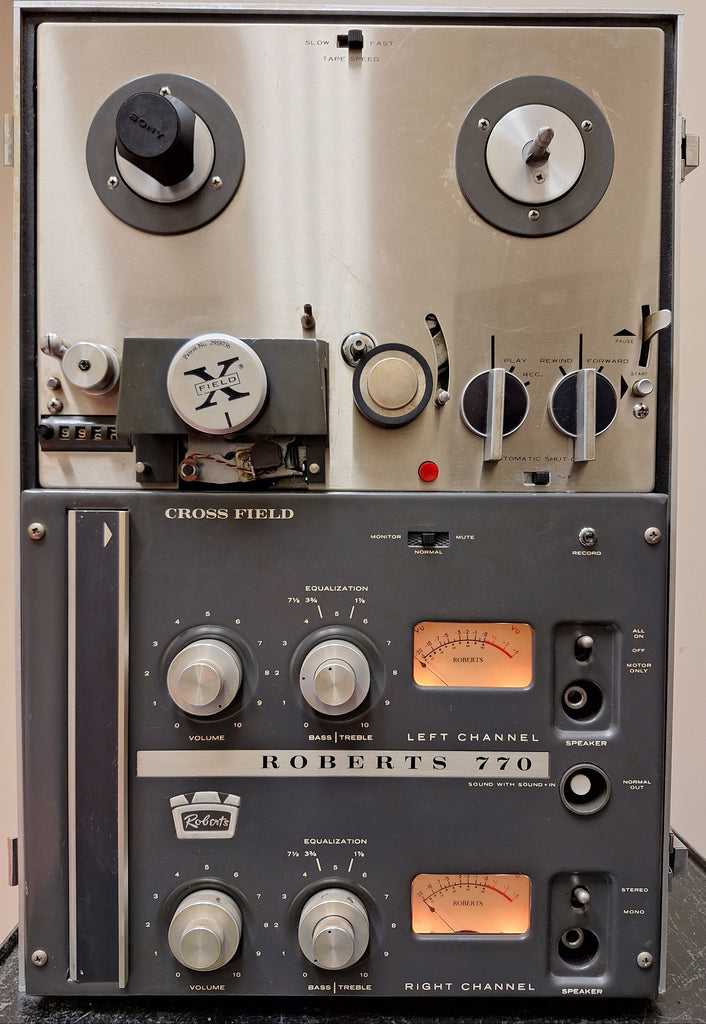

Type 4-track, 2-channel, stereo/monaural open reel tape system
Heads 1 x record/playback, 1 x bias, 1 x erase
Motor 2 speed hysteresis synchronous
Reel size up to 7 inch reel
Tape speeds 1 7⁄8 3 3⁄4 7 1⁄2 ips
Wow and flutter 0.15% (7 1⁄2 ips)
Frequency response 40Hz to 23kHz (7 1⁄2 ips)
Signal to Noise Ratio 40dB
Total harmonic distortion 3%
Crosstalk 53dB
Output 800V (line)

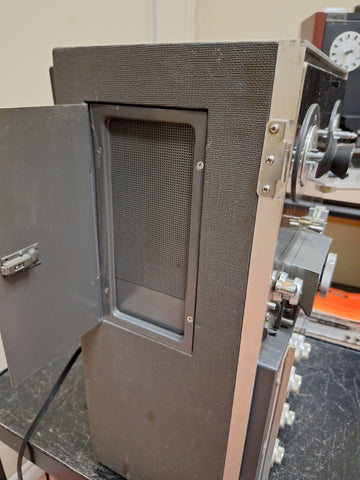

Speakers 5 x 7" oval
Valve complement 2x EF86, 2x 12AD7, 2x 6BQ5, 2x 6X4, 1x 6AR5
Dimensions 20.08" x 13.39" x 8.90"
Weight 47.40 lbs.
