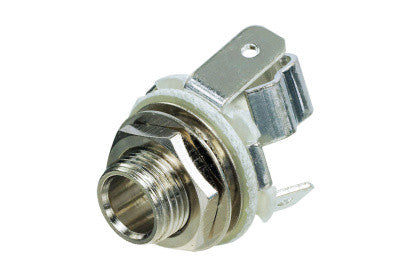

Mono Phone Chassis Jack with Short Threaded Throat - NYS229

Rean-Neutrik

Mono Phone Chassis Jack with Short Threaded Throat - NYS229

$1.44

2 pole open 1/4'' jack, 2 contacts, with washer and nut, panel thickness 3.5 mm, with 0.205" faston tabs

Product
Title
NYS229
Connection Type
Jack
Gender
female
Electrical
Dielectric strength
0.5 kVdc
Insulation resistance
≥ 1 GΩ
Rated current
depends on mated connector
Contact resistance
depends on mated connector
Mechanical
Insertion force
≤ 20 N
Withdrawal force
≥ 10 N
Lifetime
1000 mating cycles
Panel thickness
3.5 mm
Material
Contact plating
SnCe
Contacts
Brass (CuZn39Pb3)
Shell
Brass (CuZn39Pb3)
Shell plating
Nickel
Insulation
Insulation board
Environmental
Solderability
Complies with IEC 68-2-20
Temperature range
-20 °C to +70 °C
