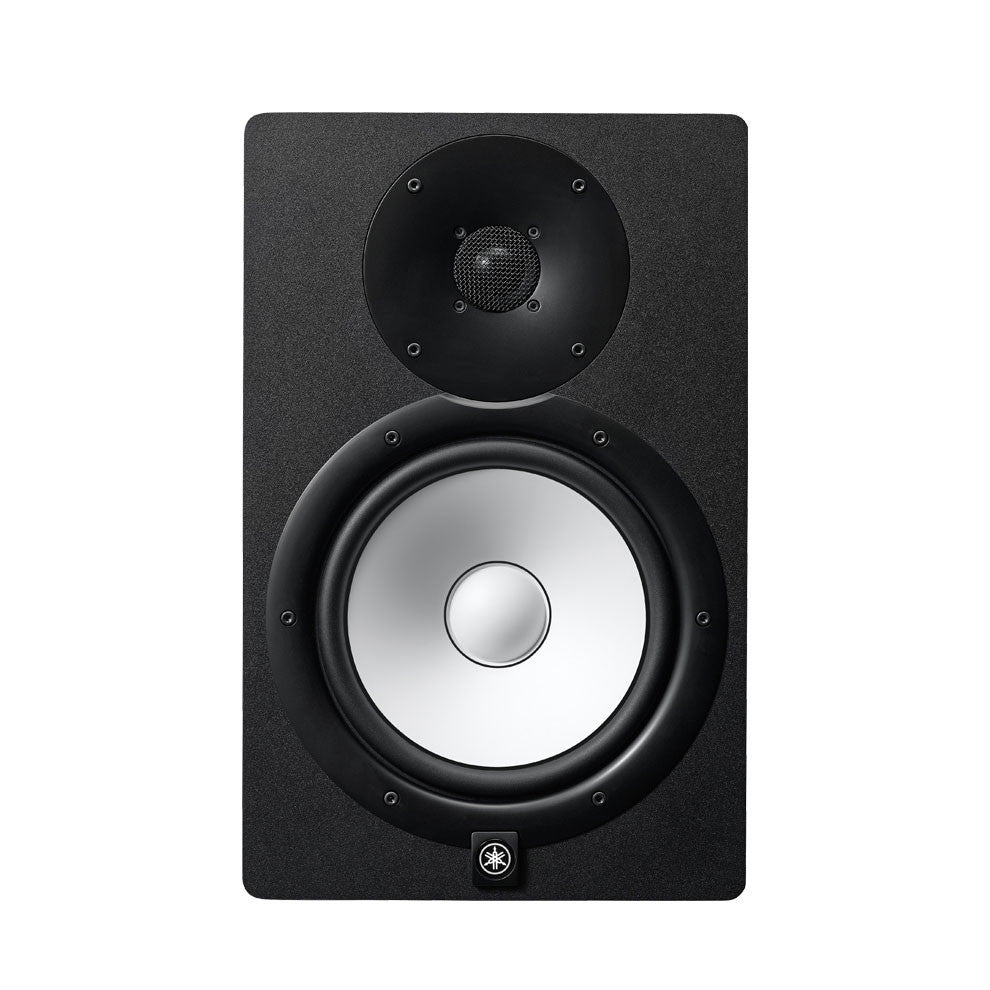

Yamaha HS8 POWERED STUDIO MONITOR
2-way bass-reflex bi-amplified nearfield studio monitor with 8" cone woofer and 1" dome tweeter.
- 2-way bass-reflex bi-amplified nearfield studio monitor with 8" cone woofer and 1" dome tweeter
- 38Hz - 30kHz frequency response
- 75W LF plus 45W HF bi-amp system for high-performance 120W power amplification
- ROOM CONTROL and HIGH TRIM response controls
- XLR and TRS phone jack inputs accept balanced or unbalanced signals
General specifications
| Speaker type | 2-way bi-amp powered studio monitor | |
|---|---|---|
| Frequency range (-10dB) | 38Hz - 30kHz | |
| Components | LF | 8" cone |
| HF | 1" dome | |
| Crossover | 2kHz | |
| Output power | 120W (LF:75W, HF:45W) | |
| I/O connectors | XLR3-31 type (balanced), PHONE (balanced) | |
| Power consumption | 60W | |
| Shape | Bass-reflex type | |
| Cabinet material | MDF | |
| Dimensions | W | 250mm (9.8") |
| H | 390mm (15.4") | |
| D | 334mm (13.1") | |
| Net weight | 10.2kg (22.5 lbs.) | |
| Others | LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz) | |
