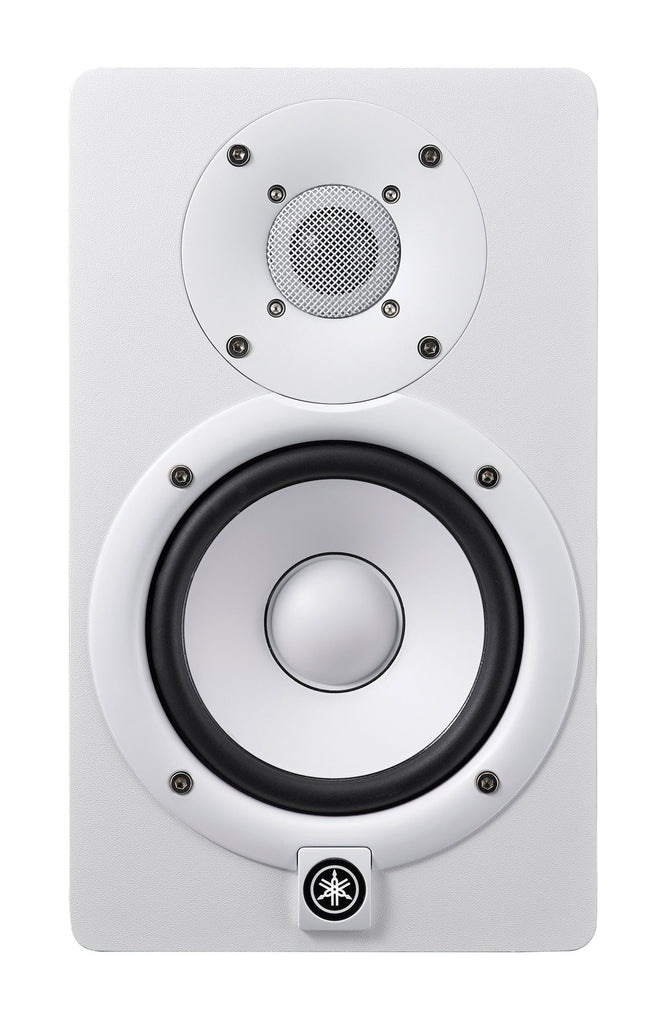

Yamaha HS5 W POWERED STUDIO MONITOR
2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter.
- 2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
- 54Hz - 30kHz frequency response
- 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
- ROOM CONTROL and HIGH TRIM response controls
- XLR and TRS phone jack inputs accept balanced or unbalanced signals
General specifications
| Speaker type | 2-way bi-amp powered studio monitor | |
|---|---|---|
| Frequency range (-10dB) | 54Hz - 30kHz | |
| Components | LF | 5" cone |
| HF | 1" dome | |
| Crossover | 2kHz | |
| Output power | 70W (LF:45W, HF:25W) | |
| I/O connectors | XLR3-31 type (balanced), PHONE (balanced) | |
| Power consumption | 45W | |
| Shape | Bass-reflex type | |
| Cabinet material | MDF | |
| Dimensions | W | 170mm (6.7") |
| H | 285mm (11.2") | |
| D | 222mm (8.7") | |
| Net weight | 5.3kg (11.7 lbs.) | |
| Others | LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz) | |
